Meson Media

2025-12-22

Meson Media

media 路径：

common_drivers/drivers/media
atv_demod  cec          di_local  di_v4l     enhancement  gdc      Makefile      osd              vin   vrr
avsync     common       di_mini   dpss       frame_sync   info     media_main.c  video_processor  vout
camera     deinterlace  di_multi  dtv_demod  frc          Kconfig  media_main.h  video_sink       vpq

common

媒体子系统通用模块集合，包含以下核心组件：

主要模块分类：

  • 内存管理模块：
  1. codec_mm/ - 编解码内存管理
  2. dma-buf-heaps/ - DMA缓冲区堆管理
  3. ion_dev/ - ION设备管理
  4. uvm/ - 统一视频内存管理
  • 图形处理模块：
  1. ge2d/ - 2D图形引擎
  2. canvas/ - canvas管理
  3. vicp/ - 视频图像协处理器
  • 硬件抽象模块：
  1. vpu/ - 视频处理单元
  2. vpu_security/ - VPU安全模块
  3. lut_dma/ - LUT DMA管理
  4. rdma/ - RDMA管理
  • 框架支持模块：
  1. vfm/ - 视频框架管理
  2. media_proxy/ - 媒体代理
  3. sw_sync/ - 软件同步
  4. resource_mgr/ - 资源管理

arch

arch/目录主要是寄存器、时钟等特定硬件相关，不做深究。

$ ls arch/
clk  Makefile  registers

canvas

graph LR
    A[canvas_probe] --> B[amcanvas_manager_exit]
    B --> C[canvas_pool_config]
    B --> D[canvas_class]
    C --> E[canvas_pool_init]
    C --> F[canvas_pool_register_const_canvas]


$ ls canvas/
canvas.c  canvas_mgr.c  canvas_priv.h  canvas_reg.h  Kconfig  Makefile

数据结构

  • 读写宏

#define canvas_io_read(addr) readl(addr) #define canvas_io_write(addr, val) writel((val), addr)

struct canvas_device_info {
	const char *device_name;
	spinlock_t lock; /* spinlock for canvas */
	struct resource res;
	unsigned char __iomem *reg_base;
	struct canvas_s canvasPool[CANVAS_MAX_NUM];
	int max_canvas_num;
	struct platform_device *canvas_dev;
	ulong flags;
	ulong fiq_flag;
};
  • 定义全局的canvas_info

static struct canvas_device_info *canvas_info;

  • canvas pool

struct canvas_s canvasPool[CANVAS_MAX_NUM];

12  struct canvas_s {
13  	struct kobject kobj;
14  	u32 index;
15  	ulong addr;
16  	u32 width;
17  	u32 height;
18  	u32 wrap;
19  	u32 blkmode;
20  	u32 endian;
21  	u32 dataL;
22  	u32 dataH;
23  };

主要功能API

  • canvas_lut_data_build 将canvas参数转换成寄存器

  • canvas管理函数

  1. canvas_config_ex() - 完整canvas配置
  2. canvas_config() - 简化canvas配置
  3. canvas_read() - 读取canvas状态
  4. canvas_copy() - canvas复制
  5. canvas_update_addr() - 更新canvas地址
  • 硬件抽象层
  1. canvas_config_locked() - 带锁的硬件配置
  2. canvas_read_hw() - 硬件寄存器读取
  3. canvas_lut_data_parser() - 寄存器数据解析

codec_mm

  • Makefile
13 $(MEDIA_MODULE_NAME)-$(CONFIG_AMLOGIC_MEDIA_CODEC_MM) += common/codec_mm/codec_mm.o
14 $(MEDIA_MODULE_NAME)-$(CONFIG_AMLOGIC_MEDIA_CODEC_MM) += common/codec_mm/codec_mm_scatter.o
15 $(MEDIA_MODULE_NAME)-$(CONFIG_AMLOGIC_MEDIA_CODEC_MM) += common/codec_mm/codec_mm_keeper.o
16 $(MEDIA_MODULE_NAME)-$(CONFIG_AMLOGIC_MEDIA_CODEC_MM) += common/codec_mm/dmabuf_manage.o
17 $(MEDIA_MODULE_NAME)-$(CONFIG_AMLOGIC_MEDIA_CODEC_MM) += common/codec_mm/codec_mm_track.o
18 $(MEDIA_MODULE_NAME)-$(CONFIG_AMLOGIC_MEDIA_CODEC_MM) += common/codec_mm/codec_mm_track_kps.o
19 $(MEDIA_MODULE_NAME)-$(CONFIG_AMLOGIC_MEDIA_CODEC_MM) += common/codec_mm/codec_mm_state.o
20 $(MEDIA_MODULE_NAME)-$(CONFIG_AMLOGIC_MEDIA_CODEC_MM) += common/codec_mm/codec_mm_sys.o
21 $(MEDIA_MODULE_NAME)-$(CONFIG_AMLOGIC_MEDIA_CODEC_MM) += common/codec_mm/codec_mm_prealloc.o
  • codec_mm_driver
    static struct platform_driver codec_mm_driver = {
  .probe = codec_mm_probe,
  .remove = NULL,
  .driver = {
          .owner = THIS_MODULE,
          .name = "codec_mm",
          .of_match_table = amlogic_mem_dt_match,
      }
};

flowchart TD
    A[codec_mm_probe开始] --> B[解析保留内存区域]

    B --> B1[解析linux,secure_vdec_reserved]
    B --> B2[解析linux,codec_mm_reserved]
    B --> B3[条件解析linux,codec_mm_reserved_ext]

    B1 --> C[获取内存管理结构体]
    B2 --> C
    B3 --> C

    C --> D[注册codec_mm类]
    D --> E{类注册是否成功?}
    E -->|失败| F[返回错误码]
    E -->|成功| G[初始化保留内存设备]

    G --> H[内存管理核心初始化]
    H --> I[设置DMA掩码]

    I --> J[散射内存管理初始化]
    J --> K[内存保持器管理初始化]

    K --> N[注册配置路径]
    N --> O[初始化触发节点配置]
    O --> P[注册状态操作]

    P --> Q[初始化页面分配加速任务]
    Q --> R[初始化预分配加速任务]

    R --> S{是否启用高级调试?}
    S -->|是| T[启动MTE同步标签kprobe线程]
    S -->|否| U[跳过高级调试]

    T --> V[codec_mm_probe完成]
    U --> V

    V --> W["返回成功(0)"]

    style A fill:#e1f5fe
    style V fill:#c8e6c9
    style F fill:#ffcdd2
  • dmabuf_manage_init
graph LR

A[media_main_init] --> B[dmabuf_manage_init]
B --> C[fops]
C --> D[dmabuf_manage_ioctl]

#define DMABUF_MANAGE_EXTEND_EXPORT_DMABUF _IOWR(DMABUF_MANAGE_IOC_MAGIC, 201, struct dmabuf_manage_extend_buffer) #define DMABUF_MANAGE_EXTEND_GET_DMABUFINFO _IOWR(DMABUF_MANAGE_IOC_MAGIC, 202, struct dmabuf_manage_extend_buffer) #define DMABUF_MANAGE_EXTEND_ALLOCDMABUF _IOWR(DMABUF_MANAGE_IOC_MAGIC, 204, struct dmabuf_manage_extend_buffer) #define DMABUFMANAGE_DEV “/dev/secmem”

static int dmabuf_manage_alloc_dmabuf(unsigned long args)
{
	int res = -EFAULT;
	struct dmabuf_manage_buffer info;
	int fd_flags = O_RDWR | O_CLOEXEC;
	struct dmabuf_manage_block *block;
	struct dma_buf *dbuf;
	int alloc_page = 0;

	pr_enter();
	memset(&info, 0, sizeof(struct dmabuf_manage_buffer));
	res = copy_from_user((void *)&info, (void __user *)args, sizeof(info));

	block = kzalloc(sizeof(*block), GFP_KERNEL);

	alloc_page = info.size / PAGE_SIZE;
   if (alloc_page == 0) {
		alloc_page = 1;
	}
	block->paddr = codec_mm_alloc_for_dma("dmabuf", alloc_page,
		PAGE_SHIFT, CODEC_MM_FLAGS_DMA);

	block->size = PAGE_ALIGN(info.size);
	block->handle = info.handle;
	block->type = info.type;
	block->flags |= DMABUF_ALLOC_FROM_CMA;
	dbuf = get_dmabuf(block, fd_flags);
	res = dma_buf_fd(dbuf, fd_flags);

	return res;

}

dmabuf_manage_export

//将物理内存区域导出为DMA缓冲区文件描述符
static long dmabuf_manage_export(unsigned long args, int extend)
{
	int ret;
	struct dmabuf_manage_block *block;
	struct dma_buf *dbuf;
	int fd;
	int fd_flags = O_CLOEXEC;
	struct secmem_extend_block extend_block;

	pr_enter();
	block = (struct dmabuf_manage_block *)
		kzalloc(sizeof(*block), GFP_KERNEL);

	ret = copy_from_user((void *)block, (void __user *)args,
		sizeof(struct secmem_block));

	block->type = DMA_BUF_TYPE_SECMEM;
	dbuf = get_dmabuf(block, fd_flags);
	fd = dma_buf_fd(dbuf, fd_flags);

	return fd;
}

dmabuf_manage_get_handle

//通过DMA缓冲区文件描述符获取对应的句柄标识
static long dmabuf_manage_get_handle(unsigned long args)
{
	int ret;
	long res = -EFAULT;
	int fd;
	struct dma_buf *dbuf;
	struct dmabuf_manage_block *block;

	pr_enter();
	ret = copy_from_user((void *)&fd, (void __user *)args, sizeof(fd));

	dbuf = dma_buf_get(fd);

   block = dbuf->priv;
	if (block->extend)
		res = block->handle;//句柄
	else
		res = (long)(block->handle & (0xffffffff));
	dma_buf_put(dbuf);
	return res;
}

dmabuf_manage_get_phyaddr

//通过DMA缓冲区文件描述符获取对应的物理地址
static long dmabuf_manage_get_phyaddr(unsigned long args)
{
	int ret;
	long res = -EFAULT;
	int fd;
	struct dma_buf *dbuf;
	struct dmabuf_manage_block *block;

	pr_enter();
	ret = copy_from_user((void *)&fd, (void __user *)args, sizeof(fd));
	dbuf = dma_buf_get(fd);
	block = dbuf->priv;
	if (block->extend)
		res = block->paddr;//物理地址
	else
		res = (long)(block->paddr & (0xffffffff));
	dma_buf_put(dbuf);

	return res;
}

dmabuf_manage_import

//导入DMA缓冲区文件描述符，获取对应的物理内存地址，用于设备直接内存访问
static long dmabuf_manage_import(unsigned long args)
{
	int ret;
	long res = -EFAULT;
	int fd;
	struct dma_buf *dbuf;
	struct dma_buf_attachment *attach;
	struct sg_table *sgt;
	dma_addr_t paddr;
	struct dmabuf_manage_block *block;

	pr_enter();
	ret = copy_from_user((void *)&fd, (void __user *)args, sizeof(fd));

	dbuf = dma_buf_get(fd);

	attach = dma_buf_attach(dbuf, dmabuf_manage_dev);

	sgt = dma_buf_map_attachment(attach, DMA_FROM_DEVICE);

	paddr = sg_dma_address(sgt->sgl);
	block = dbuf->priv;
	if (block->extend)
		res = paddr;
	else
		res = (long)(paddr & (0xffffffff));
	dma_buf_unmap_attachment(attach, sgt, DMA_FROM_DEVICE);
   dma_buf_detach(dbuf, attach);
	dma_buf_put(dbuf);
	return res;
}

dmabuf_manage_register_channel

//注册安全视频解码通道，为特定解码器创建专用的安全DMA缓冲区
static long dmabuf_manage_register_channel(unsigned long args)
{
	struct secure_vdec_channel *channel = NULL;
	struct secure_pool_info *pool = NULL;
	int ret = 0;
	int fd = -1;
	int fd_flags = O_CLOEXEC;
	struct dmabuf_manage_block *block = NULL;
	struct dma_buf *dbuf = NULL;

	mutex_lock(&g_secure_pool_mutex);
	pr_enter();

	channel = (struct secure_vdec_channel *)kzalloc(sizeof(*channel), GFP_KERNEL);

	ret = copy_from_user((void *)channel, (void __user *)args, sizeof(*channel));

	pool = dmabuf_manage_get_secure_vdec_pool(channel->id_high, channel->id_low);//通过通道ID查找对应的安全内存池
	if (pool) {
		pool->channel_register = 1;
		block = (struct dmabuf_manage_block *)
			kzalloc(sizeof(*block), GFP_KERNEL);

		block->size = pool->block_size;
		block->type = DMA_BUF_TYPE_SECURE_VDEC;
		block->priv = (void *)channel;

		dbuf = get_dmabuf(block, fd_flags);

		fd = dma_buf_fd(dbuf, fd_flags);//获取fd

	}
	mutex_unlock(&g_secure_pool_mutex);
	return fd;//返回fd
}

uvm

common/common14-5.15/common/common_drivers/drivers/media/common/uvm

uvm是exporter，分配dmabuf

struct dma_buf *uvm_alloc_dmabuf(size_t len, size_t align, ulong flags)
{
	struct uvm_handle *handle;
	struct dma_buf *dmabuf;

	handle = uvm_handle_alloc(len, align, flags);
	if (IS_ERR_OR_NULL(handle))
		return ERR_PTR(-ENOMEM);

	dmabuf = uvm_dmabuf_export(handle);
	if (IS_ERR_OR_NULL(dmabuf)) {
		kfree(handle);
		return ERR_PTR(-EINVAL);
	}
	UVM_PRINTK(UVM_DBG, "%s. len=%zu dmabuf:0x%px handle:0x%px\n",
		   __func__, len, dmabuf, handle);

	return dmabuf;
}
EXPORT_SYMBOL(uvm_alloc_dmabuf);

graph LR
A[uvm_alloc_dmabuf] --> B[uvm_dmabuf_export]
B --> C[meson_uvm_dma_ops]
B --> D[dma_buf_export]
  1. meson_uvm_dma_ops
    //谁分配内存，谁提供 dma_buf_ops，并负责其全生命周期管理
static struct dma_buf_ops meson_uvm_dma_ops = {
 .attach = meson_uvm_attach,
 .detach = meson_uvm_detach,
 .map_dma_buf = meson_uvm_map_dma_buf,
 .unmap_dma_buf = meson_uvm_unmap_dma_buf,
 .release = meson_uvm_release,
 .begin_cpu_access = meson_uvm_begin_cpu_access,
 .end_cpu_access = meson_uvm_end_cpu_access,
 .vmap = meson_uvm_vmap,
 .vunmap = meson_uvm_vunmap,
 .mmap = meson_uvm_mmap,
};

    meson gem

    drm 中的exporter

graph LR
A[drm_ioctl_desc] --> B[am_meson_gem_create_ioctl]
B --> C[am_meson_gem_object_create]
B --> D[drm_gem_handle_create]
B --> E[drm_gem_object_put]

C --> I[meson_gem_object_funcs]
C --> F[drm_gem_object_init]
C --> G[am_meson_gem_alloc_video_secure_buff]
C --> H[am_meson_gem_alloc_ion_buff]

I --> J[meson_gem_prime_export]
J --> K[uvm_alloc_dmabuf]
  1. meson_gem_object_funcs
    static const struct drm_gem_object_funcs meson_gem_object_funcs = {
 .free = meson_gem_object_free,
 .export = meson_gem_prime_export,
 .get_sg_table = meson_gem_prime_get_sg_table,
 .vmap = meson_gem_prime_vmap,
 .vunmap = meson_gem_prime_vunmap,
 .mmap = meson_gem_prime_mmap,
 .vm_ops = &drm_gem_cma_vm_ops,
};

    media driver

common/driver_modules/media_modules/drivers/

frame provider

  • amh_dhp

  1. aml_dhp_init ```c static int __init aml_dhp_init(void) { struct aml_dhp_dev *dev = NULL; int ret = -1;

    dev = kmalloc(sizeof(*dev), GFP_KERNEL); if (!dev) return -ENOMEM;

    dev->dev_no = MKDEV(AML_DHP_MAJOR, 0);

    ret = register_chrdev_region(dev->dev_no, 1, DEVICE_NAME);

    cdev_init(&dev->cdev, &aml_dmp_fops); dev->cdev.owner = THIS_MODULE;

    ret = cdev_add(&dev->cdev, dev->dev_no, 1);

    ret = class_register(&dhp_class);

    dev->dev = device_create(&dhp_class, NULL, dev->dev_no, NULL, DEVICE_NAME);

    ret = dma_coerce_mask_and_coherent(dev->dev, DMA_BIT_MASK(64));

    INIT_LIST_HEAD(&dev->inst_head); mutex_init(&dev->mutex); dhp_func_reg(__aml_dhp_task); g_dev = dev;

    LOG_INFO(“DHP driver init success.\n”);

    return 0; }


1. aml_dmp_fops

```mermaid
graph LR
A[aml_dmp_fops] --> B[aml_dhp_ioctl]
B --> C[du_alloc_fd]
B --> D[du_mmap]
B --> E[du_sgt_mmap]
B --> F[aml_dhp_mem_sync]

C --> G[aml_dhp_alloc_fd]
G --> H[aml_get_dmabuf]
H --> I[aml_dhp_dbuf_ops]
  1. aml_dhp_dbuf_ops

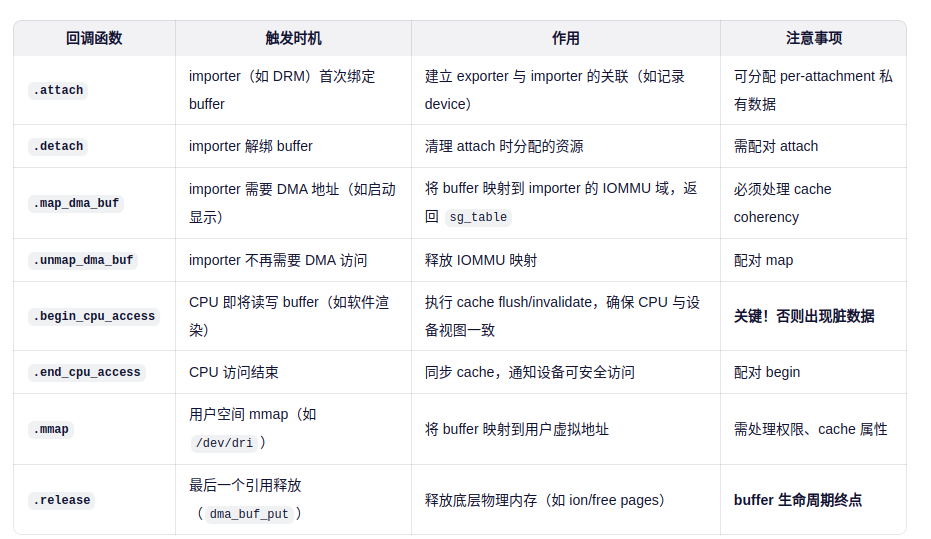

//dma_buf_ops 是 exporter（导出者）提供的回调函数集合
static const struct dma_buf_ops aml_dhp_dbuf_ops = {
	.attach		= aml_dhp_dbuf_attach,
	.detach		= aml_dhp_dbuf_detach,
	.map_dma_buf	= aml_dhp_dbuf_map,
	.unmap_dma_buf	= aml_dhp_dbuf_unmap,
	.begin_cpu_access = aml_dhp_dbuf_begin_cpu_access,
	.end_cpu_access	= aml_dhp_dbuf_end_cpu_access,
	.mmap		= aml_dhp_dbuf_mmap,
	.release	= aml_dhp_dbuf_release,
};

回调函数说明 #dmabuf ops dmabuf ops

sequenceDiagram
    participant Decoder as VPU Decoder (exporter)
    participant Buffer as dma_buf
    participant Display as DRM/KMS (importer)

    Decoder->>Buffer: dma_buf_export() → 创建 buffer
    Display->>Buffer: dma_buf_attach() → .attach()
    Display->>Buffer: dma_buf_map_attachment() → .map_dma_buf()
    Display->>Display: 启动显示控制器（使用 sg_table）
    Display->>Buffer: dma_buf_unmap_attachment() → .unmap_dma_buf()
    Display->>Buffer: dma_buf_detach() → .detach()
    Decoder->>Buffer: dma_buf_put() → .release()
  • decoder ```c

static struct dma_buf_ops dmabuf_manage_ops = { .attach = dmabuf_manage_attach, .detach = dmabuf_manage_detach, .map_dma_buf = dmabuf_manage_map_dma_buf, .unmap_dma_buf = dmabuf_manage_unmap_dma_buf, .release = dmabuf_manage_buf_release, .mmap = dmabuf_manage_mmap };


### frame adapter

```mermaid
graph LR

A[frame_rate_driver_init] --> B[register_frame_rate_uevent_func]
B --> C[vframe_rate_uevent]

 void vframe_rate_uevent(int duration)
{
	char *configured[2];
	char framerate[40] = {0};

	sprintf(framerate, "FRAME_RATE_HINT=%lu",
		(unsigned long)duration);
	configured[0] = framerate;
	configured[1] = NULL;
	kobject_uevent_env(&frame_rate_dev->dev->kobj,
		KOBJ_CHANGE, configured);

	pr_debug("%s: sent uevent %s\n", __func__, configured[0]);
}

EXPORT_SYMBOL(vframe_rate_uevent);

frame sink

drivers/frame-sink

graph LR
A[vpu_fops] --> B[vpu_ioctl]
B[vpu_ioctl] --> C[vpu_multi_src_addr_config]
B -->  E[vpu_src_addr_config]
C[vpu_multi_src_addr_config] --> D[vpu_dma_buffer_get_phys]
E[vpu_src_addr_config] --> D[vpu_dma_buffer_get_phys]
D[vpu_dma_buffer_get_phys] --> F[vpu_dma_buffer_map]

vpu_dma_buffer_map

static int vpu_dma_buffer_map(struct vpu_dma_cfg *cfg)
{
	int ret = -1;
	int fd = -1;
	struct page *page = NULL;
	struct dma_buf *dbuf = NULL;
	struct dma_buf_attachment *d_att = NULL;
	struct sg_table *sg = NULL;
	void *vaddr = NULL;
	struct device *dev = NULL;
	enum dma_data_direction dir;

   /*cfg下传*/
	fd = cfg->fd;//用户空间传入的 dma-buf 文件描述符
	dev = cfg->dev;//当前设备的 struct device *（用于 IOMMU/attachment）
	dir = cfg->dir;//DMA 数据方向（DMA_TO_DEVICE / DMA_FROM_DEVICE）

	dbuf = dma_buf_get(fd);//通过 fd 获取 struct dma_buf *，增加引用计数。
	d_att = dma_buf_attach(dbuf, dev);//将该 buffer attach 到当前设备，建立 IOMMU 映射


#if LINUX_VERSION_CODE < KERNEL_VERSION(6, 2, 0)
	sg = dma_buf_map_attachment(d_att, dir);
#else
	sg = dma_buf_map_attachment_unlocked(d_att, dir);
#endif

	page = sg_page(sg->sgl);
	cfg->paddr = PFN_PHYS(page_to_pfn(page));//物理地址
	cfg->dbuf = dbuf;
	cfg->attach = d_att;
	cfg->vaddr = vaddr;//虚拟地址
	cfg->sg = sg;

	return 0;
}

感谢阅读！ `
